6-63amp AC110V Dual Power Automatic Transfer Switch 2P 50/60Hz, 2POLE 63A ATS Auto Changeover Switch for Generator, CE Certified ATS Solar Back Up Power Auto Selector Overvoltage, Undervoltage
$39.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by xpressosolutions.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$39.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by xpressosolutions.com
Free 30-day returns Details
Product details
| Management number | 210751979 | Release Date | 2026/04/02 | List Price | $15.60 | Model Number | 210751979 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- WORKING PRINCIPLE：The 2P 63A 110v dual power automatic transfer switch supports automatic and manual operation, and can switch between two power sources automatically or manually. It can monitor the status of the main and backup power sources in real time. When power supply A fails, the ats transfer switch will switch to power supply B within 2 seconds to ensure continuous, reliable, and safe power supply. Once source A is restored, it will automatically switch back. Both power inputs support power, generator, or photovoltaic connections.
- AUTOMATIC TRANSFER SWITCH MODE: Simply set the top switch to "Auto", the red LED indicator light on the upper left side is on. When main power (N) is normal, the red LED indicator light on the lower left side is on. If main power fails, the system automatically switches to backup power (R) within 2 seconds, the red LED indicator light at the bottom right is on. When main power is restored, generator transfer switch automatically switches back, ensuring your equipment stays on without interruption.
- MANUAL TRANSFER SWITCH MODE: Set the top switch to "Manual" mode. You can then use the handle to manually select either Main (N) or Backup (R) power. The corresponding red LED will light up to indicate a stable power source. If manual transfer switch the handle is in the middle position, both power sources will be disconnected. This mode is perfect for load testing, system checks, or any situation that requires direct control.

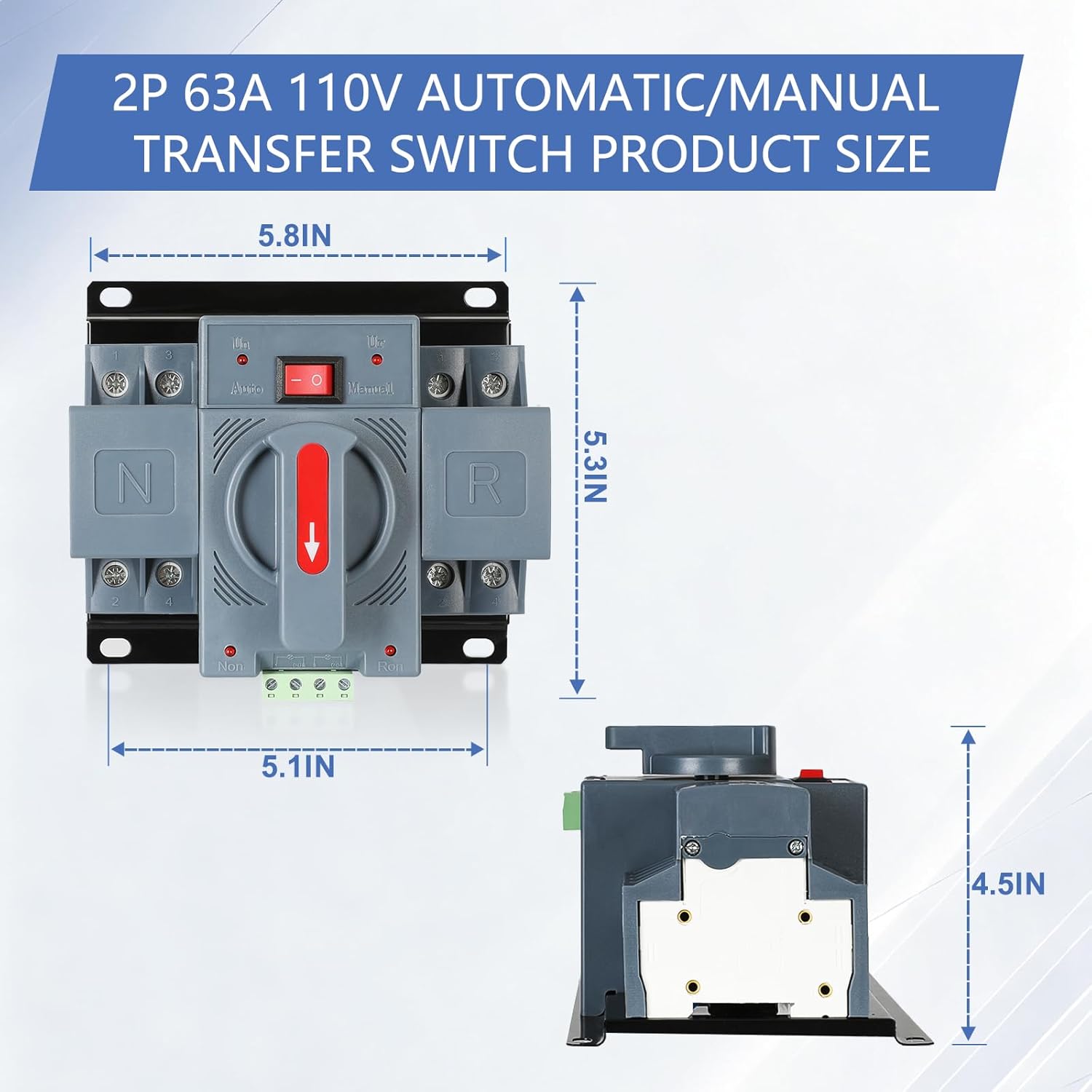

- PRODUCT PARAMETERS：CB Type, means this 63a 110v dual power automatic transfer switch is composed of two circuit breakers and mechanical interlocking；Line Voltage: AC110V, Line Current: 6A-63A, Operating Frequency: 50HZ/60HZ, Conversion Time: 2S or so; Installation Dimension: 128mm*122mm ； 110V/50Hz Undervoltage value: 85V, Recovery value: 95V; Overvoltage value: 145V, Recovery value: 130V (± 5V). Please select the product with the corresponding specifications according to the actual working voltage you need
- WIDE APPLICATION: This 2p ats automatic transfer switch ensures a stable power supply, it is used in situations where power outages cannot be sustained,which is very suitable for high-demand equipment; used in hospitals, low-temperature cold storage, data centers and emergency systems, particularly in office buildings and public spaces with fire safety requirements, it can automatically and quickly switch to the backup power supply during the power outage of the main power supply to ensure safe and reliable power supply. Suitable for indoor and outdoor generators.
- QUALITY ASSURANCE: Made of high-quality PA6, it has high strength, high temperature resistance; it is lightweight but sturdy. It contains detailed and clear instructions and guidance, with easy and simple operation, making it a practical choice for professionals and informed DIY users. If you have any questions about installation or use, or if you encounter any problems during use, our customer service team is always ready to assist.
| Model | ATS-2P-63A-110V |
|---|---|
| Wattage | 7030 watts |
| Terminal | Screw |
| Brand Name | IGEYAPA |
| Unit Count | 1.0 Count |
| Switch Type | Toggle |
| Circuit Type | 2-way |
| Contact Type | Normally Open |
| Manufacturer | IGEYAPA |
| Material Type | Acrylonitrile Butadiene Styrene, Copper |
| Mounting Type | Wall Mount |
| Connector Type | Crimp |
| Current Rating | 63 Amps |
| Operation Mode | ON-OFF-ON |
| Item Dimensions | 5.8 x 5.3 x 4.5 inches |
| Number of Items | 1 |
| Contact Material | Copper |
| Operating Voltage | 110 Volts (AC) |
| Specification Met | CCC, CE, RoHS |
| Included Components | 1PCS*ATS-2P-63A-AC110V+1PCS*Instruction manual |
| Number of Positions | 1 |
| Lower Temperature Rating | 24.8 Degrees Fahrenheit |
| Upper Temperature Rating | 104 Degrees Fahrenheit |
| International Protection Rating | IP50 |
